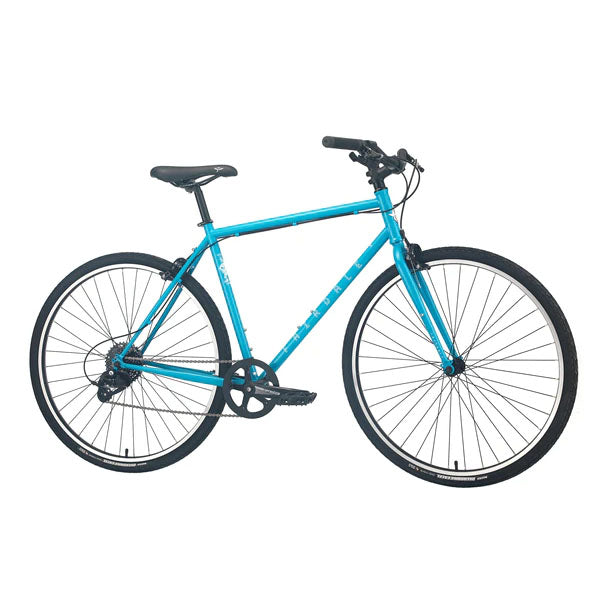

LOOKFAR - GLOSS SURF BLUE



Designer: Fairdale

$669.00

The Lookfar makes cruising and commuting easy. One simple trigger shifter changes the gears up-or-down through all 8-speeds. The bike’s 40mm wide Maxxis tires feel fast on smooth ground while still confidently handling rough terrain.

The Lookfar comes equipped with rack and fender mounts for lots of useful set-up options. We even chose to use normal Schrader valve tubes so you won’t need to use a special bike pump.

The Lookfar shares the same proven geometry as our ever-popular Weekender model.

Gloss Surf Blue is available in X-Small, Small, Medium, and Large.
Gloss Black is available in Small, Medium, and Large.

Sizing

X-Small: 4'11" - 5'4" height
Small:
 5'2" - 5'7" height
Medium: 5'7" - 5'10" height
Large: 5'9" - 6'1" height

Sizing is approximate. Please consult with your local bike shop to assist with fit.

Specifications

Frame: 1020 Steel, with Rack and Fender mounts
Fork: 1020 Steel, 1 1/8”
Handlebar: Fairdale Archer v3, Aluminum
Stem: 70mm, Forged Aluminum
Headset: FSA, Sealed Integrated, 45º/45º
Brake Lever: Aluminum, Short Pull
Brake: Aluminum, Dual Pivot, 55-75mm reach w/Quick Rels.
Grips: Fairdale Swan
Saddle: Fairdale
Seat Post: Micro adjust, 27.2mm
Seat Clamp: Fairdale, 30mm
Cranks: FSA Tempo 1X (S=165mm, M=170mm, L/XL=175mm)
Chainwheel: 42t
BB Parts: FSA
Pedals: Odyssey Twisted PC
Rims: 700c, 36-Hole, Schrader Valve, Aluminum
Front Hub: 36H, 3/8” Axle, Aluminum Shell, Looseball
Rear Hub: 36H, 3/8” Axle, 8-Speed Cassette, Looseball
Tires: Maxxis Overdrive Excel 700c x 40mm
Chain: KMC Z8.1, 8-Speed
Cassette: MicroShift, 11-34T, 8-Speed
R. Shift Lever: MicroShift TS39-8R Trigger, 8-Speed
R. Derailleur: MicroShift RD-M26CS, 8-Speed
Shift Cable: Fairdale

Geometry

Size XS (49cm) S (52cm) M (55cm) L (58cm)
Top Tube (Effective) 508mm
525mm
552mm
578mm
Top Tube (Actual) 495mm
507mm
531mm
559mm
Seat Tube (BB Center To TT Top) 385mm
436mm
490mm
538mm
Seat Tube
(BB Center To TT Center)
317mm
370mm
448mm
496mm
Seat Tube Angle 74.5 ° 74° 73° 73°
Head Tube Length 100mm 120mm 140mm
160mm
Head Tube Angle 69.6 ° 70° 71° 72.5°
Chain Stay Length 440mm 440mm
440mm
440mm
Wheelbase 1021mm 1030mm
1038mm
1050mm
Standover 698mm 733mm
780mm 815mm
Stack 521mm 541mm
564mm
589mm
Reach 363mm 370mm
379mm
398mm
Fork Length 401mm 401mm
401mm
401mm
Fork Offset 50mm 50mm 50mm 50mm
BB Drop 68mm 68mm
68mm
68mm
Dropout Spacing 135mm 135mm 135mm 135mm
BB Type English 68 English 68 English 68 English 68
Seat Post 27.2mm 27.2mm 27.2mm 27.2mm
Seat Clamp 30mm 30mm 30mm 30mm
Approx. Max Tire Width 42mm 42mm
42mm
42mm
Wheel Size 700c 700c 700c 700c

*Specs subject to change without notice.
